Building animatronic substrates for calibration and testing of bionic interfaces.
Setup:
Results:
Goniometer for omnidirectional biophysical interface
Capturing dynamic images of the eye are not only a critical component to understanding the health of the visual system but also reveal critical biomarkers for the overall well being of the entire body. This prototype enables the acquisition of a multi-view capture, an adaptive bionic interface for a computational approach in non-invasive rapid screening.

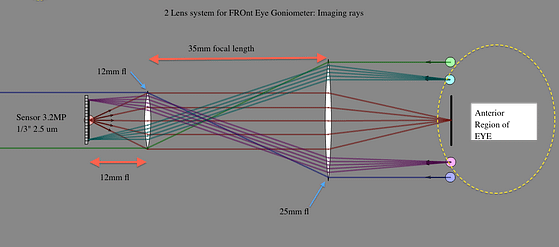

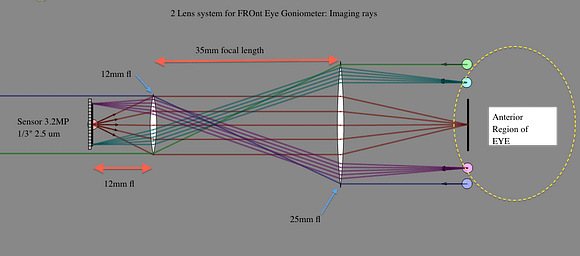

![](https://mlxgw3ckhxfs.i.optimole.com/cb:Pope~1edd6/w:580/h:256/q:mauto/wm:112556:1:ce:0:0:3/f:avif/https://everettlawson.com/wp-content/uploads/2019/02/FRONT-OF-EYE-IMAGING-GONIOMETER.png)

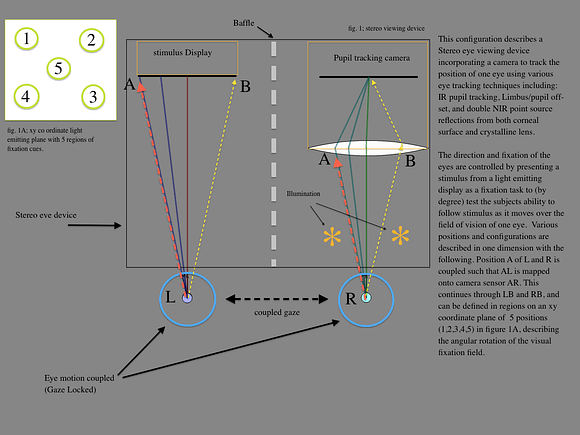

![](https://mlxgw3ckhxfs.i.optimole.com/cb:Pope~1edd6/w:580/h:435/q:mauto/wm:112556:1:ce:0:0:3/f:avif/https://everettlawson.com/wp-content/uploads/2019/02/lazyeye.png)
Lawson, left eye, 50 micrometer resolution, self-guided vasculature mapping
Prototype development:
Carrier arm (see video below, right), stepper motor actuated capture rig for real-time adaptive alignment (camera sensor, illumination)
Sensor scaffold for opitical alignment within system (dual-field)
Biomimetic focusing and multi-structural illumination paths
Sample outputs (MEL left retina microstructures and vasculature):
CAD excerpts:
